General:

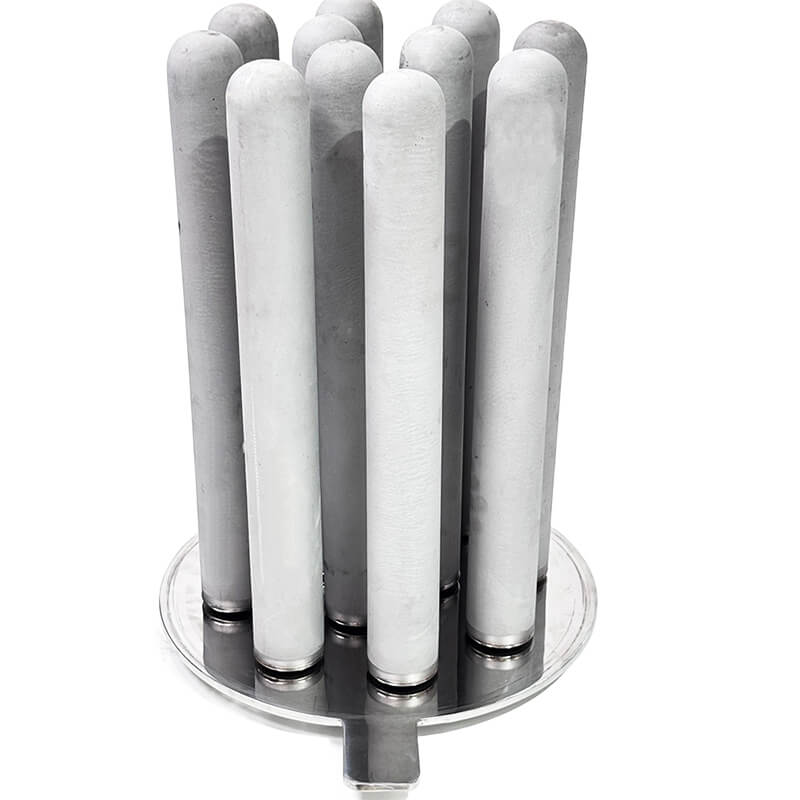

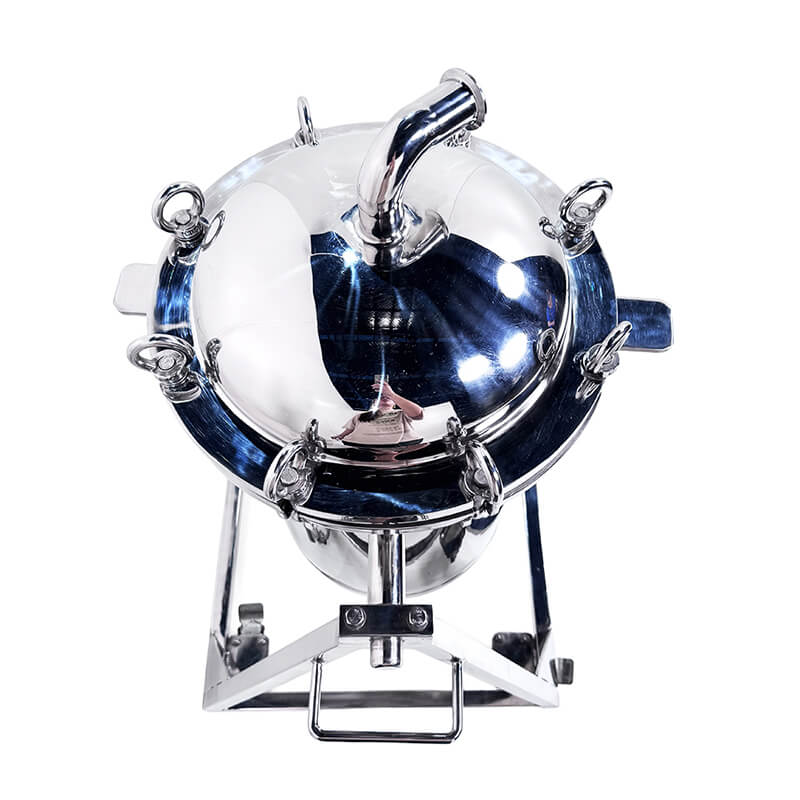

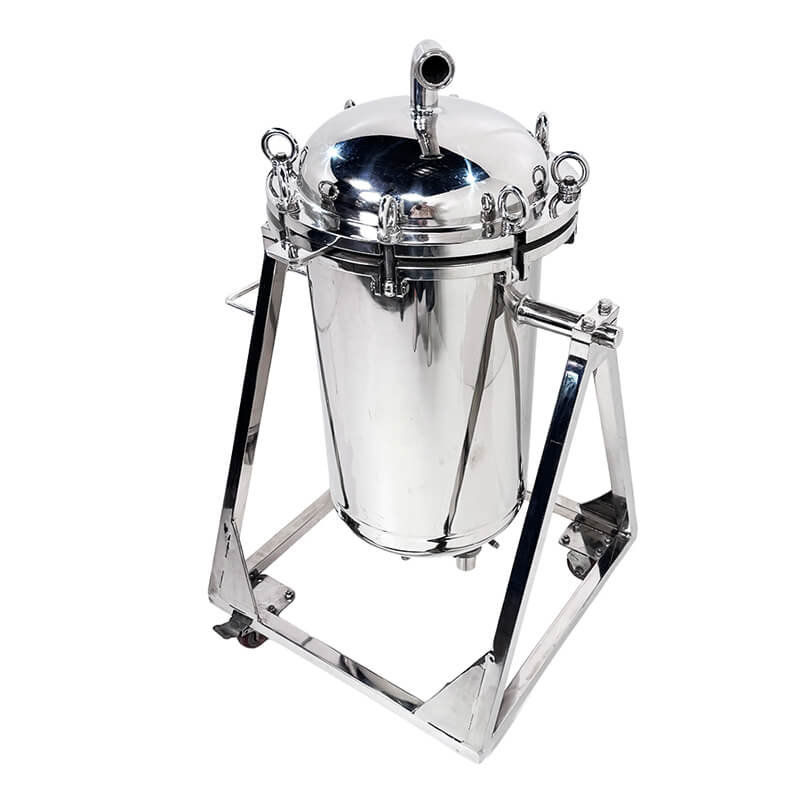

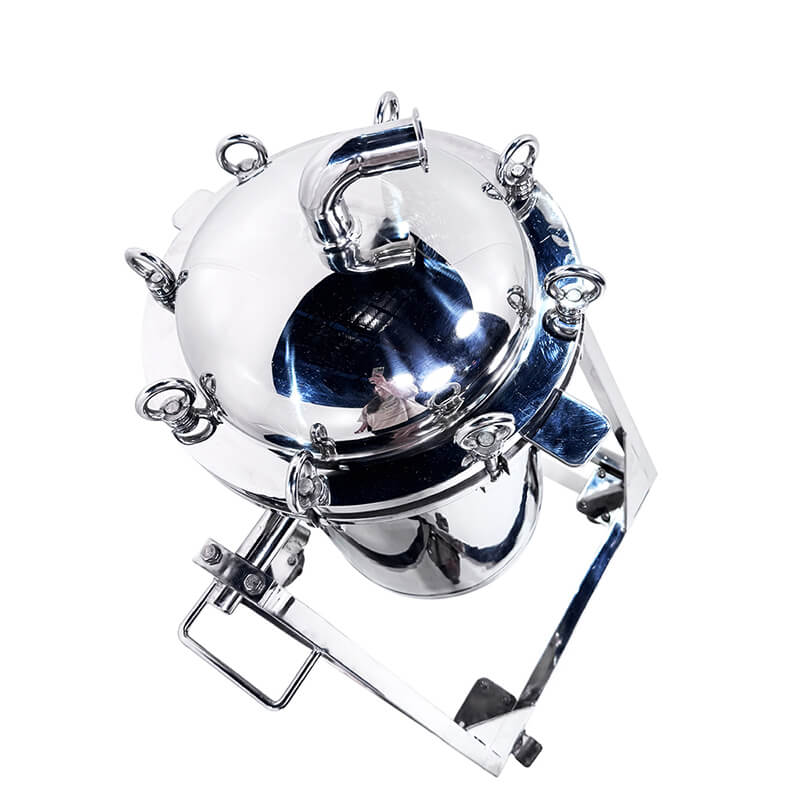

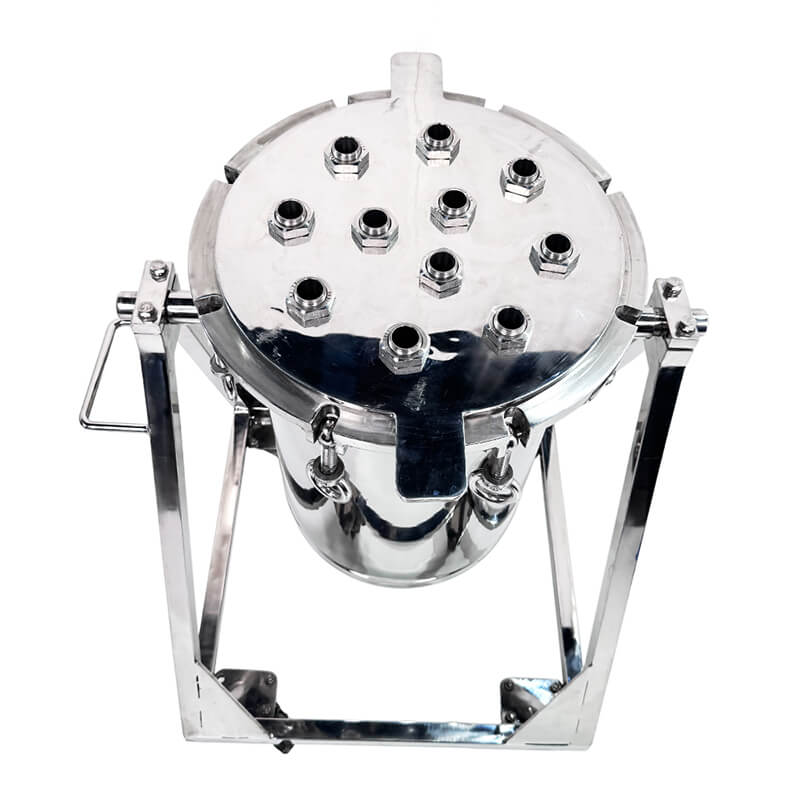

Various stainless steel materials can be used as the housing,and the internal filter element is a titanium filter tube, characterized by high-temperature resistance,high-pressure resistance,strong acid and strong alkali corrosion resistance,and the filter element can be repeatedly regenerated and used.It is a hollow filter tube made of titanium metal powder through high-temperature sintering by powder metallurgy method. It is widely used in iquid-solid separation in food and beverage,pharmaceutical, chemical and other industries. In pharmaceutical industry, it is especially suitable for decarburization and filtration in infusion injection production line.
Main technical parameters
Filtration fineness pm: 0.45-80
Filter element length mm: 300
Air permeability m3/m2.h.kpa: 5-600
Operating pressure: 0.1-0.4
| Model | Specification | Overall dimensions | Theoretical pore size(μm) | Theoretical flow (t/n) |
| XKI | 1 element | 180×850 | 0.1-30 | 1 |
| XKI | 3 elements | 280×850 | 0.1-30 | 1 |
| XKI | 5 elements | 380×850 | 0.1-30 | 2 |
| XKI | 7 elements | 440×850 | 0.1-30 | 3 |
| XKI | 9 elements | 440×850 | 0.1-30 | 3.5 |
