General

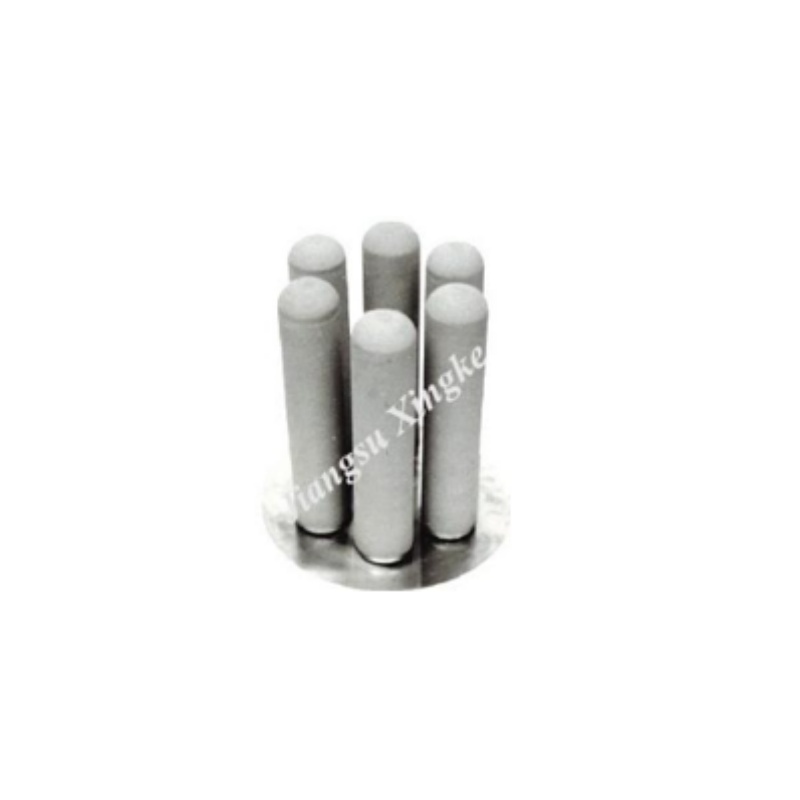

The titanium filter element is made of high-purity titanium as the raw material with a special process through high pressure and high-temperature sintering; therefore, the titanium filter element has many excellent properties due to its special material composition and molding process:

1. High strength and strong pressure resistance: (not easy to fall off)
2. Uniform structure, high porosity, small filtration resistance and good permeability;
3. Strong high (low) temperature resistance: (steam filtration)
4. Strong corrosion resistance: (no rust in water and chemical liquid)
5. Long service life: (several times that of ordinary membrane filter elements)
6. High hardness and easy in backflushing: (easy to flush on line)
7. Strong affinity to the human body;

8. It is easy to form and process,and can be processed into various shapes of filter elements according to requirements.

Main performance and parameters

1. Filtration fineness: 0.45～50 μm;
2. Porosity: 28-50%;
3. Air permeability: 0.02～20MPcm/m2.h.mmH2o
4. Compressive strength: 0.5~1.5Mpa;
5. Corrosion resistance: 90%-PH2～12;
6. Maximum operating pressure difference: 0.3Mpa;
7. Temperature resistance: 280℃(wet)

Main specifications

1. M2060mm length 10 inches
2. M2060mm length 20 inches
3. M2060mm length 30 inches
4. M2060mm length 40 inches
