Main features

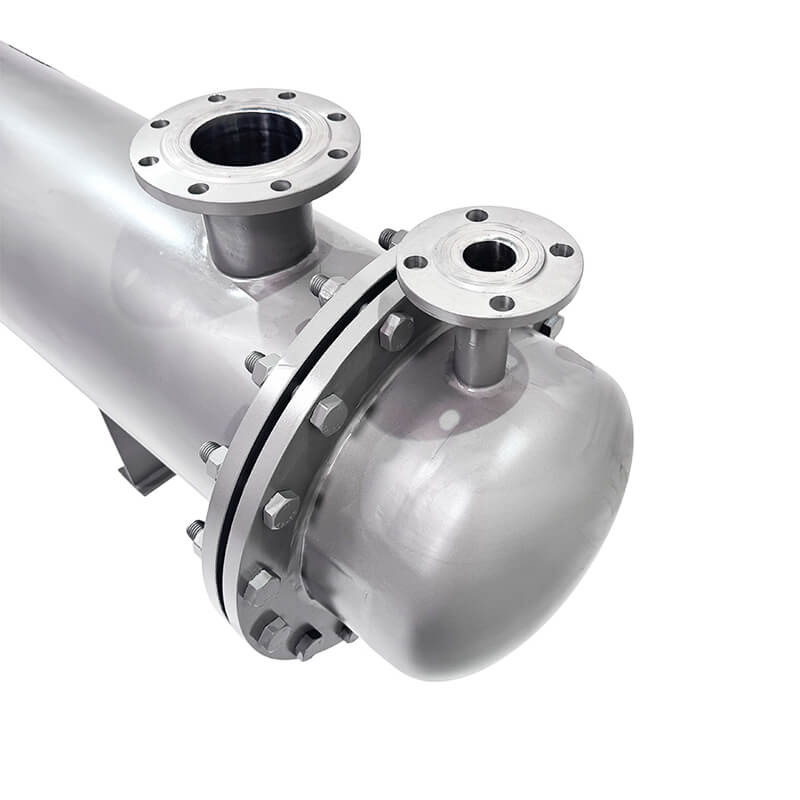

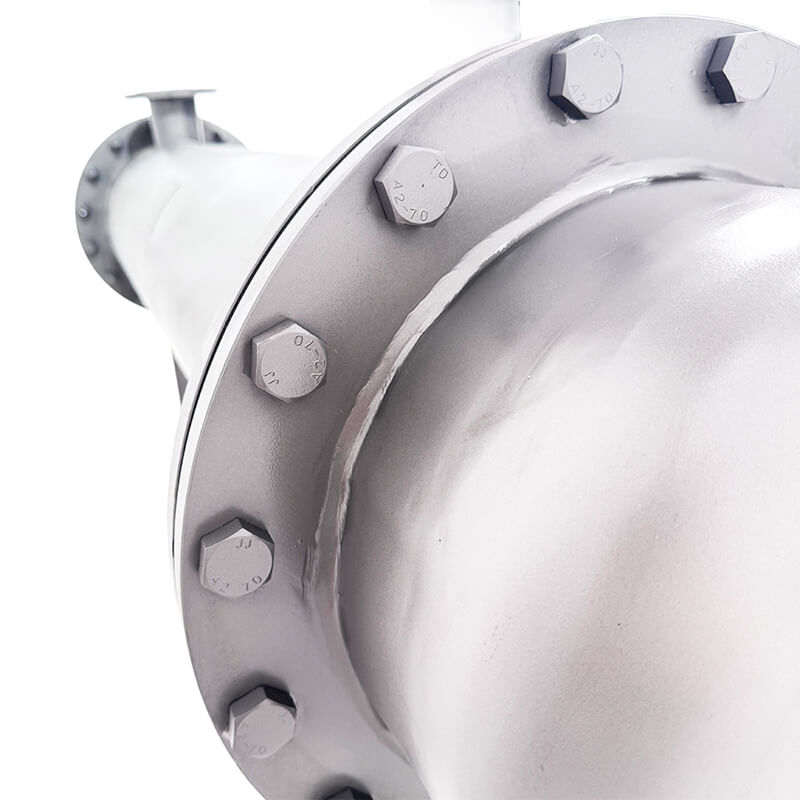

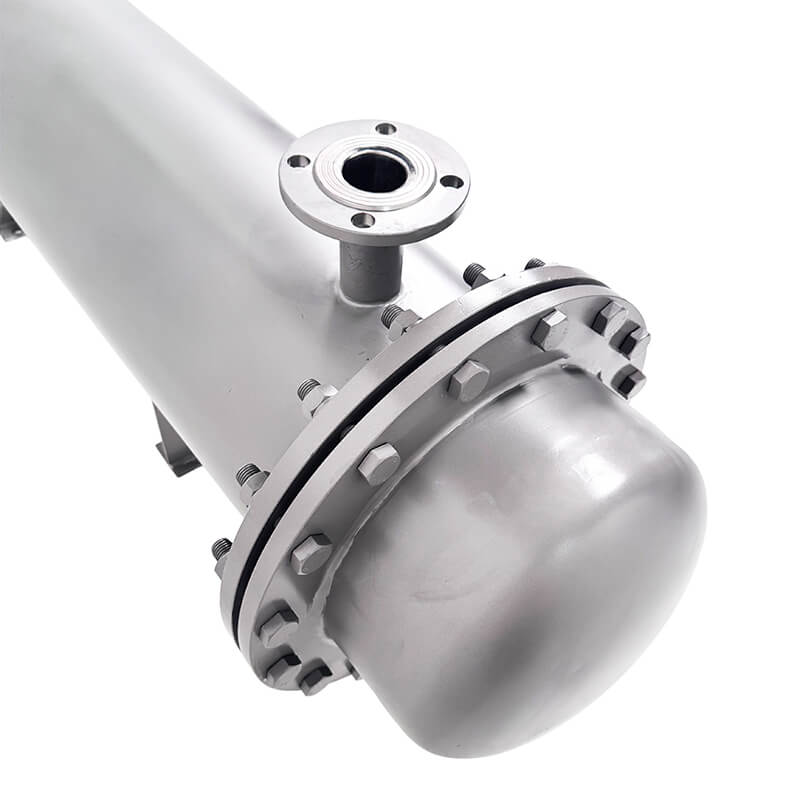

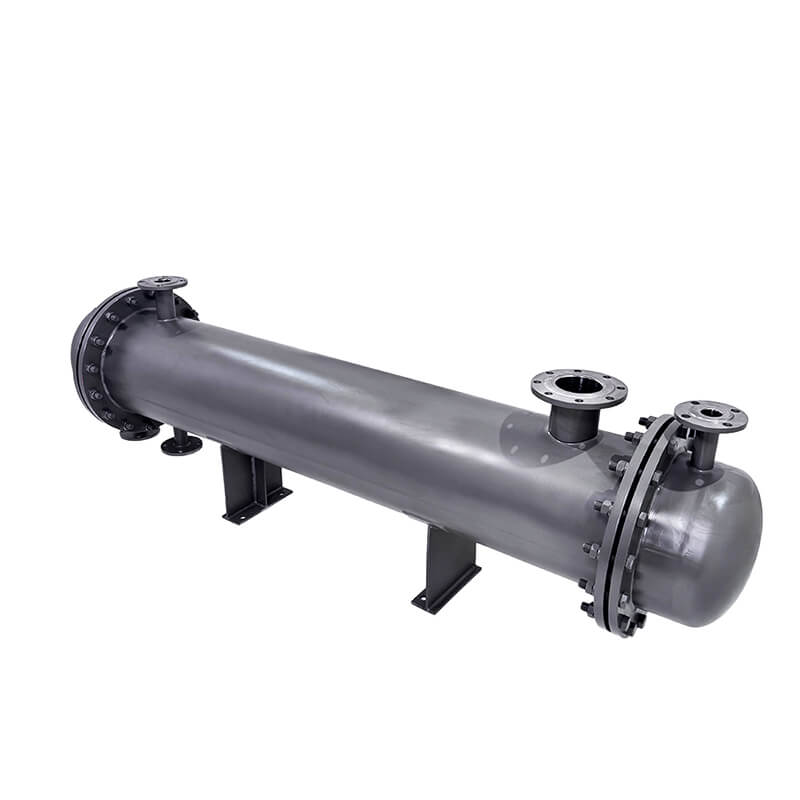

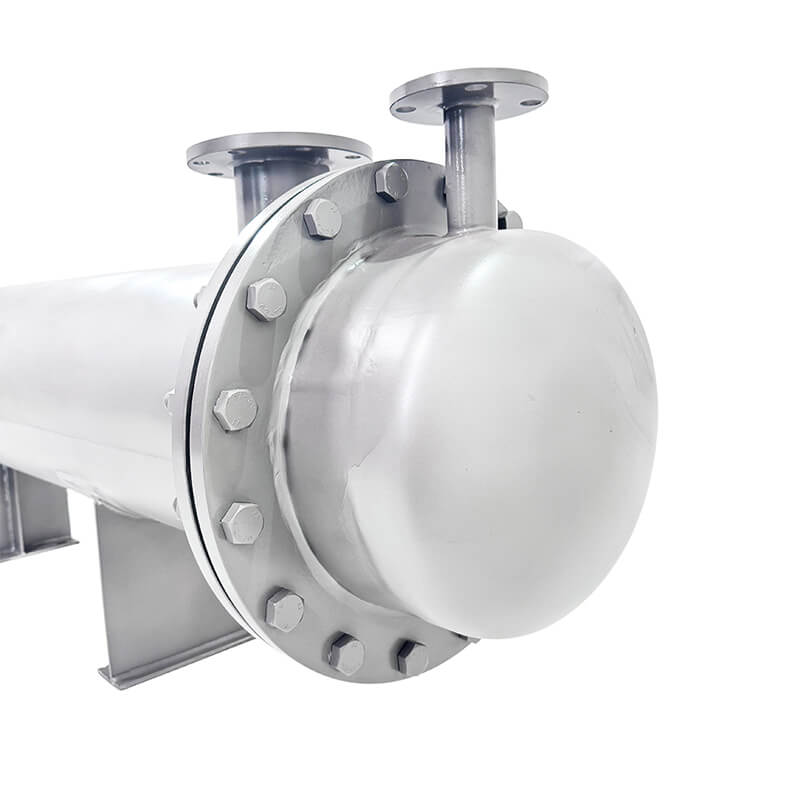

The pipe bundle condensers produced by the Company can be divided into carbon steel pipe bundle condenser, stainless steel pipe bundle condenser and carbon steel &stainless steel mixed pipe bundle condenser according to their materials.They can be divided into fixed pipe-sheet,thin pipe-sheet,floating head and U-shaped tubular heat exchangers according to their forms;single-pipe side,double-pipe side and multi-pipe side according to their structures.The heat transfer area is 1-1000 m²,which can be customized according to the user's needs.
| Nominal diameter Dg | Number sides | Numberof pipes | Nominal value Heatexchangearea(m²) | Pipeside passage cross-sectional area (m²) | The flowrateofpipe side:flow rate 0.5m/sec (m³/hr) | |||||||||
| Pipelength(m) | Carbon steelpipeφ25×2.5 | |||||||||||||
| 1500 | 2000 | 3000 | 4000 | 6000 | Stainless steelpipeφ25×2 | |||||||||
| 159 | I | 14 | 1.5/1.62 | 2/2.17 | 3/3.27 | 0.0044/0.0049 | 7.92/8.82 | |||||||
| 219 | I | 26 | 3/3.00 | 3/3.00 | 6/6.06 | 8/8.11 | 0.0082/0.0090 | 14.76/16.20 | ||||||
| lⅡ | 26 | 3/3.00 | 4/4.02 | 6/6.06 | 8/8.11 | 0.0041/0.0045 | 7.38/8.10 | |||||||
| 273 | I | 44 | 5/5.08 | 5/4.62 | 10/10.26 | 14/13.72 | 21/20.63 | 0.0138/0.0152 | 24.84/27.36 | |||||
| l | 40 | 5/4.62 | 6/6.19 | 9/9.33 | 12/12.47 | 19/18.76 | 0.0063/0.0069 | 11.34/12.42 | ||||||
| 325 | I | 60 | 7/6.93 | 9/9.28 | 14/14.00 | 19/18.71 | 28/28.13 | 0.0188/0.0208 | 33.84/37.44 | |||||
| IⅡ | 56 | 6/6.47 | 9/8.66 | 13/13.06 | 17/17.46 | 28/28.13 | 0.0088/0.0097 | 15.84/17.46 | ||||||
| 400 | I | 119 | 14/13.74 | 18/18.41 | 28/27.76 | 37/37.10 | 55/55.80 | 0.0374/0.0412 | 67.32/74.16 | |||||
| lⅡ | 110 | 13/12.70 | 17/17.02 | 26/25.66 | 34/34.20 | 50/51.58 | 0.0173/0.0190 | 31.14/34.20 | ||||||
| 500 | I | 185 | 45/43.15 | 55/57.68 | 85/86.74 | 0.0581/0.0641 | 104.58/115.38 | |||||||
| ll | 180 | 40/41.99 | 55/57.68 | 85/86.74 | 0.0282/0.0312 | 104.58/115.38 | ||||||||
| 600 | I | 169 | 60/62.7 | 85/83.88 | 125/126.13 | 0.0845/0.0932 | 152.10/167.76 | |||||||
| lⅡ | 266 | 60/62.05 | 80/82.94 | 125/124.72 | 0.0418/0.0461 | 75.24/82.98 | ||||||||
| 700 | I | 379 | 90/88.41 | 120/118.17 | 175/177.71 | 0.1191/0.01313 | 214.38/236.34 | |||||||
| Ⅱ | 358 | 85/83.51 | 110/111.62 | 165/167.86 | 0.0562/0.0620 | 101.16/111.60 | ||||||||
| 800 | I | 511 | 120/119.20 | 160/159.16 | 240/239.60 | 0.1605/0.01770 | 288.90/318.60 | |||||||
| IⅡ | 488 | 115/113.83 | 150/152.16 | 230/228.81 | 0.0767/0.0845 | 138.06/152.10 | ||||||||
| 900 | I | 649 | 150/151.39 | 200/202.36 | 195/196.44 | 0.2039/0.2248 | 367.02/404.46 | |||||||
| ll | 630 | 145/146.96 | 195/196.44 | 295/295.40 | 0.0990/0.1091 | 178.20/196.38 | ||||||||
| 1000- | I | 805 | 185/187.78 | 250/251.00 | 372/377.45 | 0.2509/0.2788 | 455.22/501.84 | |||||||
| ll | 790 | 185/184.75 | 245/246.95 | 370/371.36 | 0.1244/0.1374 | 223.92/246.96 | ||||||||
